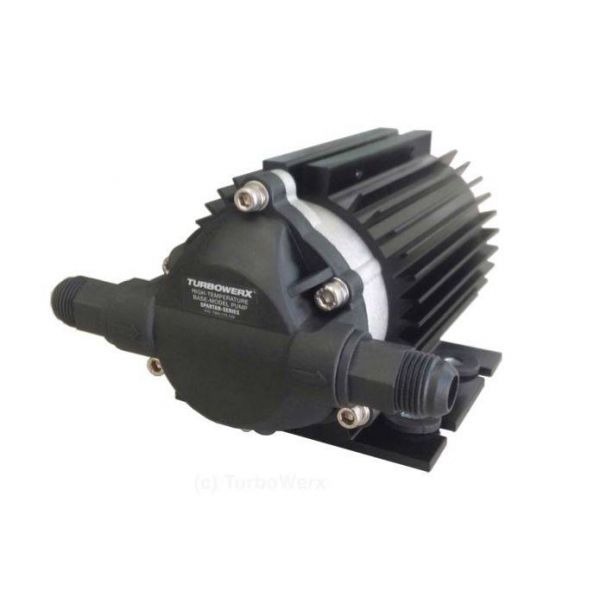

TurboWerx Base-Model Spartan Electric Oil Scavenge Pump
*(1) Spartan Pumps In Stock, Fast Ship!
Price Match Guarantee
Found it for less but value our service?
Details
TurboWerx Base-Model Spartan Electric Oil Scavenge Pump - TWX-175-12V, TWX-175-24V
Proven, powerful, and quiet. Manufactured exclusively for TurboWerx, this custom engineered pump is designed to scavenge hot turbocharger drain oil from anywhere to anywhere in automotive applications. Time-tested, proven reliability over years, and with its 1.75GPM (105GPH) scavenging capacity, it is powerful enough to scavenge oil from two turbos. It will self-prime/draw from over 5 vertical feet, and pump the oil as high as 20 vertical feet. The Exa-Pump®-inspired custom black anodized finned heatsink lowers operating temperature, further enhancing reliability.
Whether the application moves 1 oz of oil a minute or up to 1.75 gallons a minute, 'under-flow' applications are no problem. In fact, the TurboWerx pump may be run dry indefinitely. May be operated up to 100PSI pressure.
This pump will fit inside a 7.25" x 4.0" x 4.0" box. It weighs less than 5 pounds, and includes anti-vibration mounting hardware. It is specified to handle a maximum oil temperature of 300+F, and the power consumption is 12 volts @ less than 3.5 amps. Pump inlet and outlet fittings are standard 3/8" NPT. Also suitable for other fluids, such as rear-end, engine coolant, and water. Not compatible with ATF.
This pump is an ideal economical solution for most turbocharger scavenge applications. For higher performance and even greater reliability, see our exciting premium model "Exa-Pumpâ„¢" here.
More Information
| Part Number | TWX-175-12V, TWX-175-24V |
|---|---|
| Brand | TurboWerx |
| Type of Part | Turbo Oiling |
| Length | 14 |
| Width | 10 |
| Height | 10 |
| Weight | 10.000000 |
