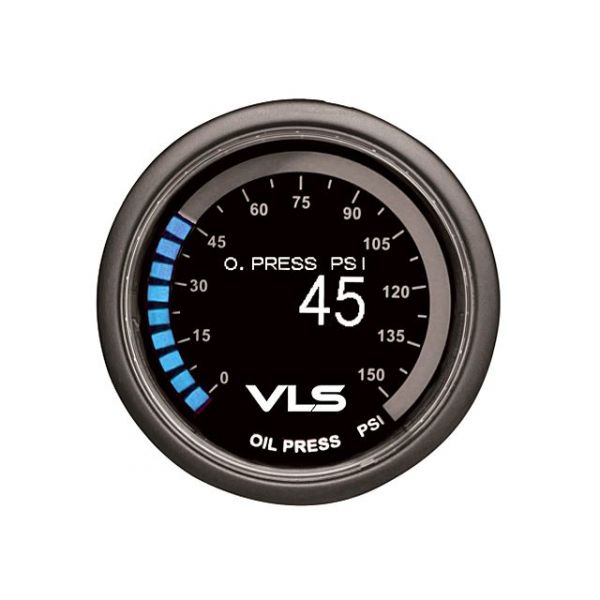

Revel VLS 52mm Digital OLED Oil Pressure Gauge
Price Match Guarantee
Found it for less but value our service?
Details
REVEL VLS OLED OIL PRESSURE GAUGE
2 1/16 in. (52mm) diameter gauge
0 PSI to 150 PSI reading
Digital OLED display
30 LED outer ring
Daisy chain compatible
Oil pressure sensor included
(1/8 NPT thread pitch)
Mounting kit included
The Revel VLS Oil Pressure gauge monitors the oil pressure from 0 PSI up to 150 PSI. The OLED screen allows for easy readings from any viewing angle, and a 30 LED outer ring for viewing at a quick glance. This kit is included with the oil pressure sensor in 1/8 NPT thread pitch for easy installation.
The Revel VLS Oil Pressure gauge is daisy-chain compatible with the VLS Boost gauge, VLS Water Temperature gauge, VLS Oil Temperature gauge, and VLS Voltage gauge.
OLED Screen
Maximum comfort is attained by the use of an OLED (Organic Light Emitting Diode) numerical display. When compared to a traditional LCD display, the OLED display provides sharper contrast resulting in a deeper black for a crisp, clear images that is easier to read at a glance. The technology also allows for undistorted viewing angles approaching 170 degrees. The OLED display also does not require a backlight to be clearly visible at night, which gives the slim profile of the gauge — perfect for mounting in areas where space is an issue.
Daisy Chain Compatible
The Revel VLS Oil Pressure gauge is daisy chain compatible with other VLS gauges. This requires only one source of power for the first gauge in the series and utilizing the included daisy chain cable to power other gauges. This allows for a clean installation that avoids having many cables connected to a power source.
Parts Included
All Revel VLS gauges include the necessary hardware, sensors, and universal mounting pod and hood, as well as the installation instructions:
(1) Oil Pressure Gauge 2 1/16 in. (52mm)
(1) Power Harness
(1) Oil pressure sensor and wiring harness
(1) Mounting Pod
(1) Sun Shade (hood)
(1) 3M double sided tape
(2) Mounting Bracket Threaded Extension
(2) Washers
(2) Nuts
(1) Mounting Bracket
More Information
| Part Number | 1TR1AA004R |
|---|---|
| Brand | Revel |
| Type of Part | Gauges, Etc |
| Length | 10 |
| Width | 8 |
| Height | 6 |
| Weight | 2.000000 |
