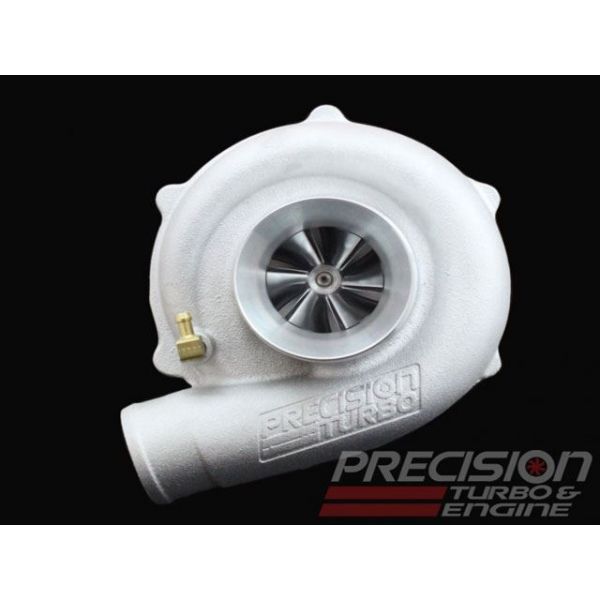

Precision 5558 Gen 1 CEA Billet Turbo - 590HP
TAGS: Precision PT5558 Turbo, CEA Gen 1, 55mm, T3/T4, Billet Wheel, 590HP
Price Match Guarantee
Found it for less but value our service?
Details
Precision 5558 Gen 1 CEA Billet Turbo - 590HP
HP Rating: 590
We know you want to be the best both on the track and off. Whether you're a diehard racer or just looking to boost your daily driver's performance, Precision Turbo and Engine has what you need. For exceptional power and unbeatable technology at an affordable price, PTE can help you find the perfect turbocharger for your unique setup.
Ball Bearing Option Available
PTE's PT5558 Turbocharger features the following:
• Exclusive CEA® (Competition Engineered Aerodynamics) compressor wheel machined from a 2618-aluminum forging
• Higher efficiency and faster transient response for maximum power and performance
• 55mm inducer compressor wheel
Compressor cover options:
- "B" compressor cover 2.8" inlet/2.0" outlet
- "E" compressor cover 3.0" inlet/2.0" outlet
- "S" compressor cover 4.0" inlet/2.5" outlet
- "Ported S" compressor cover 4.0" inlet/2.5" outlet
• 58mm, 76 trim turbine wheel
Turbine housing options:
- T3 .48, .63 or .82 A/R with 4 bolt (2.5") discharge
- T3 .48 or .63 A/R with 5 bolt discharge (with or without wastegate hole)
- T3 .48, .63 or .82 A/R with 3" V-Band discharge
- V-Band inlet .64 or .82 A/R with V-Band discharge
- T4 Tangential .58 A/R with 3 5/8" V-Band discharge
* NOTE: Additional cost may apply for certain housings.
• Available with either a Hydrodynamic 360° thrust bearing system or an air-cooled, dual ceramic ball-bearing center housing rotating assembly (CHRA)
Applicable Part#s: 10501006079, 10501006089, 10501006099, 10501006129, 10501006159, 10501006169, 10501006179, 10501006199, 10501006279, 10501206089, 10501206099, 10501206129, 10501206139, 10501206159, 10501206169, 10501206179, 10501206279, 10502006069, 10502006079, 10502006089, 10502006099, 10502006119, 10502006129, 10502006139, 10502006149, 10502006159, 10502006169, 10502006179, 10502006189, 10502006199, 10502006279, 10502006567, 10502006568, 10502006569, 10502206069, 10502206079, 10502206089, 10502206099, 10502206119, 10502206129, 10502206139, 10502206149, 10502206159, 10502206179, 10502206279, 10502206567, 10502206568, 10502206569, 10504006069, 10504006079, 10504006089, 10504006099, 10504006109, 10504006119, 10504006129, 10504006139, 10504006149, 10504006159, 10504006179, 10504006189, 10504006199, 10504006279, 10504206079, 10504206089, 10504206099, 10504206109, 10504206119, 10504206129, 10504206139, 10504206149, 10504206179, 10504206199
Precision customers have a history of setting records and getting noticed. They don't sit in the stands watching the action – they're the ones making it happen. Innovation is a collaborative process and we focus our efforts on you. Get involved and be a part of the action today with PTE.
More Information
| Part Number | 10501006079, 10501006089, 10501006099, 10501006129, 10501006159, 10501006169, 10501006179, 10501006199, 10501006279, 10501206089, 10501206099, 10501206129, 10501206139, 10501206159, 10501206169, 10501206179, 10501206279, 10502006069, 10502006079, 10502006 |
|---|---|
| Brand | Precision Turbo |
| Type of Part | CEA Billet Wheel |
| Length | 13 |
| Width | 12 |
| Height | 11 |
| Weight | 25.000000 |
