2015+ Mustang 2.3L Ecoboost Garrett Front Mount Intercooler (FMIC) - CARB Legal
TAGS: 2015, 2016, 2017, 2018, 2019, 2021, Ford Mustang 2.3L Ecoboost, Garrett Front Mount Intercooler (FMIC), CARB Legal, 857564-6001
Price Match Guarantee
Found it for less but value our service?
Found it for less but value our service?
Details
PRODUCT DESCRIPTION:

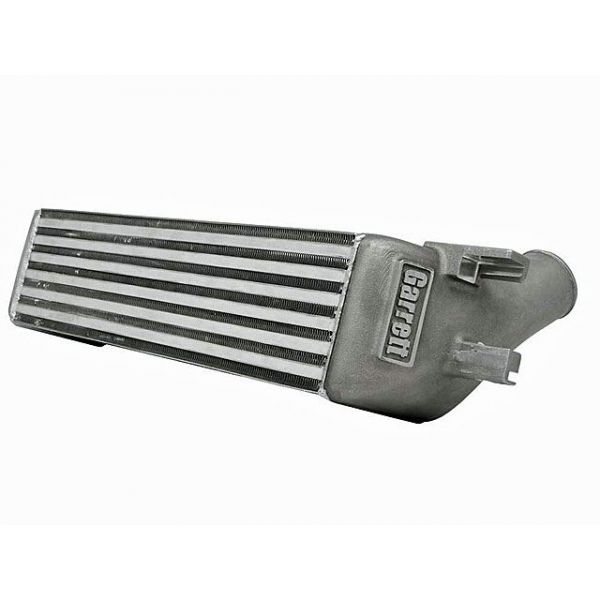

600HP Garrett Intercooler (CARB LEGAL) for 2015 to 2021+ Mustang Ecoboost. Tig welded Garrett end tanks which fit stock charge pipe hoses, clamps and bolts. Direct replacement upgrade to the stock intercooler with a 60% larger core and CARB approved 50 state emission legal!
** Fitment confirmed for mid-cycle refresh 2018+ Mustang Ecoboost; and model years 2015 to 2017 Mustang Ecoboost!! **
PRODUCT FEATURES:
Supports up to 600 horsepower
Up to 30% reduction in pressure drop
Up to 40 degree reduction in charge air temperature
Aluminum Garrett core featuring advanced in design and bar & plate construction
Tig welded Garrett end tanks
CARB E.O. # D794 approved 50 state emission legal performance upgrade
PRODUCT SPECIFICATIONS:
Core Length: 21 inches
Core Height: 5.75 inches
Core Width: 5.32 inches
Inlet Diameter: 2.75 inches
More Information
| Part Number | 857564-6001 |
|---|---|
| Brand | Garrett |
| Type of Part | Intercoolers |
| Engine Fitment | 2.3L |
| Length | 42 |
| Width | 16 |
| Height | 12 |
| Weight | 25.000000 |
