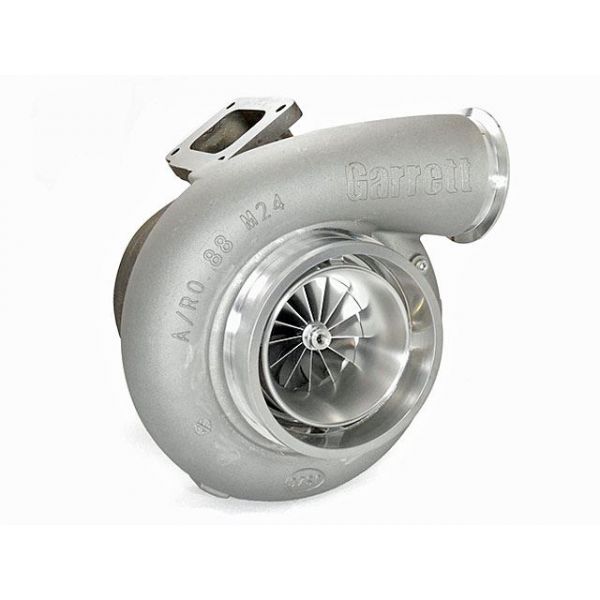

Garrett GTX4720R GEN II Dual Ball Bearing Turbo - 80mm (851285-5014S)
Product Description:
Garrett GEN2 GTX4720R (aka GEN2 GTX47-80 and GEN2 GTX8084) dual ball bearing turbocharger supercore capable of 1900HP worth of flow! (turbine housing sold separately).
The most responsive configuration for Garrett's highest flowing Gen II GTX 80mm compressor wheel. The turbo for race classes limited to a 80mm compressor wheel inducer and/or GT/GTX47 series turbo.
Product Features:
Gen II compressor wheel aerodynamics
9%-15% increased flow
Larger .88 A/R compressor housing volute
120mm comp exducer ( + 2mm)with 30% lower inertia
Compatible with GT and GTX turbine housings
Product Specifications:
Compressor Wheel Inducer: 80mm
Compressor Wheel Exducer: 120mm
Compressor Wheel Trim: 45
Compressor Housing: .88 A/R, 6 Inch Inlet (cast ported shroud), and 3.5" V-Band Outlet
Turbine Wheel Inducer: 93mm
Turbine Wheel Exducer: 84mm
Turbine Wheel Trim: 82
NOTE: Alternate oil fittings and flanges are available.
More Information
| Part Number | 851285-5014S |
|---|---|
| Brand | Garrett |
| Type of Part | GTX Gen II Series |
| Length | 18 |
| Width | 18 |
| Height | 18 |
| Weight | 40.000000 |
Reviews
Fitment
Garrett GTX4720R GEN II Dual Ball Bearing Turbo - 80mm (851285-5014S)
Product Description:
Garrett GEN2 GTX4720R (aka GEN2 GTX47-80 and GEN2 GTX8084) dual ball bearing turbocharger supercore capable of 1900HP worth of flow! (turbine housing sold separately).
The most responsive configuration for Garrett's highest flowing Gen II GTX 80mm compressor wheel. The turbo for race classes limited to a 80mm compressor wheel inducer and/or GT/GTX47 series turbo.
Product Features:
Gen II compressor wheel aerodynamics
9%-15% increased flow
Larger .88 A/R compressor housing volute
120mm comp exducer ( + 2mm)with 30% lower inertia
Compatible with GT and GTX turbine housings
Product Specifications:
Compressor Wheel Inducer: 80mm
Compressor Wheel Exducer: 120mm
Compressor Wheel Trim: 45
Compressor Housing: .88 A/R, 6 Inch Inlet (cast ported shroud), and 3.5" V-Band Outlet
Turbine Wheel Inducer: 93mm
Turbine Wheel Exducer: 84mm
Turbine Wheel Trim: 82
NOTE: Alternate oil fittings and flanges are available.
