Garrett GTX2860R Gen 2 Turbo
TAGS: GTX2860R Gen 2 Turbo, Gen II, Garrett, 475HP, 849894-5001S
Price Match Guarantee
Found it for less but value our service?
Details

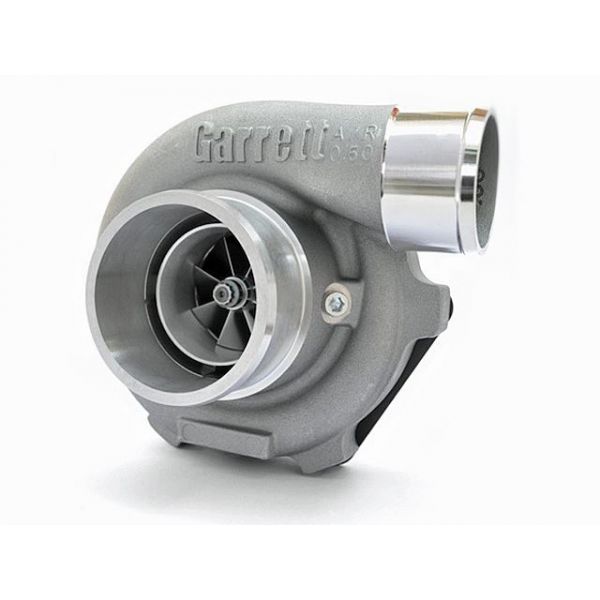

Garrett GTX2860R Gen 2 Turbo - 849894-5001S
GEN 2 GTX2860R DESCRIPTION:
Garrett GEN II GTX2860R dual ball bearing turbocharger (turbine housing sold separately). Advanced GEN II (Gen2) billet compressor wheel capable of 475HP! The Garrett GEN 2 (GEN II) GTX2860R fits turbine housings for Garrett GT28 and GTX28 series turbochargers with a 54mm inducer and 76 trim turbine wheel. Normally In Stock, Shipping Daily!
GTX2860R GEN 2 SPECIFICATIONS:
•Compressor Wheel Inducer: 46mm
•Compressor Wheel Exducer: 60mm
•Compressor Wheel Trim: 58
•Compressor Housing A/R: 0.60
•Turbine Wheel Inducer: 54mm
•Turbine Wheel Exducer: 47mm
• Turbine Wheel Trim: 76
APPLICABLE GARRETT PART#s:
•849894-5001S
GARRETT GTX GEN 2 FEATURES:
•Advanced aerodynamics & ultra high flow Garrett GTX GEN II (Gen2) compressor wheel
•Forged billet aluminum compressor wheel
•Dual ball bearing CHRA rotating assembly
•Built in turbo shaft speed port. Just add sensor and go!
TurboKits.com only sells genuine Garrett turbochargers. Don’t fall victim to look alike or knockoff “Garrett” turbos from shady online retailers or auction sites. Rest assured that when you buy from TurboKits.com you are getting a quality, brand name turbocharger with the warranty and technical support to back it up.
| Turbine Housing Options | |||||
| Inlet | Outlet | A/R | Type | ||
| T25 | 5 Bolt | .64/.86 | Internal Wastegate |  |
|
| T3 | 4 Bolt | .63/.82 | External Wastegate |  |
|
| T3 | 5 Bolt | .63/.82 | External Wastegate |  |
|
| K24/K26 | 4 Bolt | .63/.82 | External Wastegate |  |
|
| Tial Stainless Steel V-Band | V-Band | .52/.63/.82 | External Wastegate |  |
|
| T25 | T31 V-Band | .63/.82 | External Wastegate |  |
|
| T25 | 5 Bolt | .72 | External Wastegate |  |
|
| Undivided V-Band | V-Band | .57/.72 | External Wastegate/Ni-Resist |  |
|
More Information
| Part Number | 849894-5001S |
|---|---|
| Brand | Garrett |
| Type of Part | GTX Gen II Series |
| Engine Fitment | 1.4L-2.5L (200HP-475HP) |
| Length | 15 |
| Width | 15 |
| Height | 15 |
| Weight | 20.000000 |
