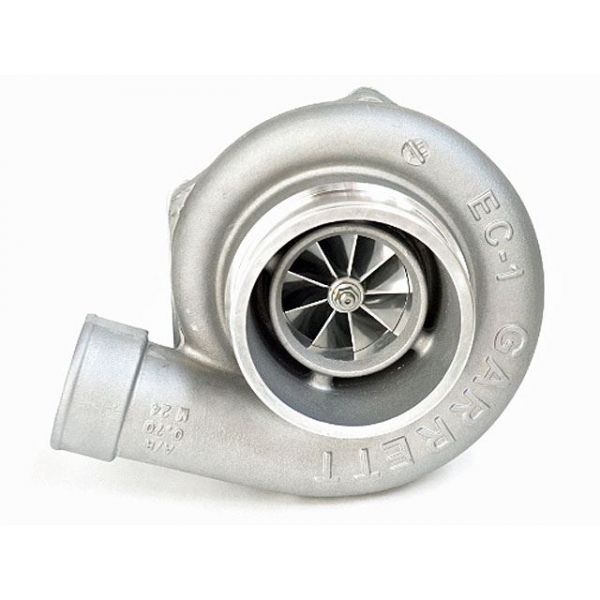

Garrett GTW3476R (aka GTW5857R) 58mm Ball Bearing Turbo - 841691-5001S
PRODUCT DESCRIPTION:
GTW3476R (aka GTW5857R) ball bearing turbo. 700HP potential flow.
GTW Series - Garrett's Performance solution to the popular 5858 size turbo. Great performance at a competitive price!
PRODUCT SPECIFICATIONS:
* Compressor Wheel Inducer: 58.3mm
* Compressor Wheel Exducer: 76.4mm
* Compressor Wheel Trim: 58
* Turbine Wheel Inducer: 65.0mm
* Turbine Wheel Exducer: 56.6mm
* Turbine Wheel Trim: 76
APPLICATION NOTES:
* NOT a direct drop-in replacement to the small frame Garrett GT or GTX Series turbochargers.

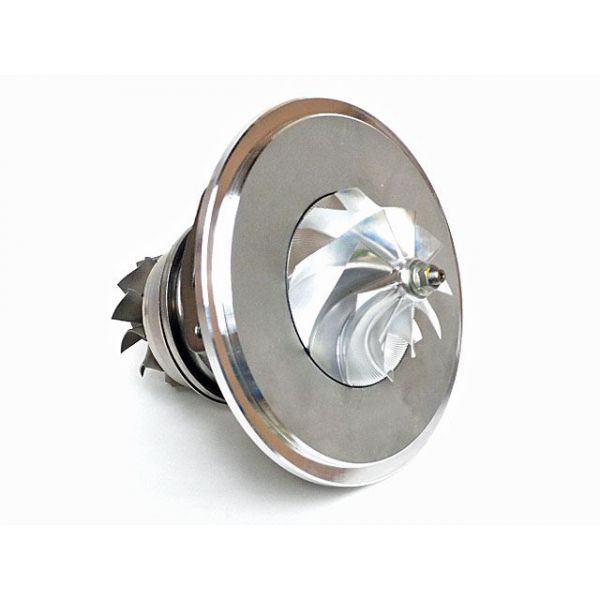

* External dimensions of the GTW Series bearing housing (CHRA) is physically larger (bulkier) than the Garrett GT and GTX series.
* GTW Series Ball Bearing CHRA DOES NOT use the same oil return fittings as the small frame Garrett GT or GTX Series turbochargers.
COOLANT (WATER) & OIL FITTINGS, FLANGES, AND COMPONENTS:
* Coolant (water) banjo kit: Product Code: ATP-FTG-003
* Oil feed options: -4 AN with built-in Restrictor (Product Code: ATP-OIL-021) OR -4 AN unrestricted (Product Code: ATP-FTG-029)
* Oil drain flange: Product Code: ATP-FLA-042
* Oil drain gasket: Product Code: ATP-GSK-027
* 8mm x 1.25 (thread pitch) Stud: Product Code: MIA-FST-030
* 8mm x 1.25 (thread pitch) Locking Head Nut: Product Code: MIA-FST-031
COMPRESSOR HOUSING OPTIONS:
* T04S Frame with 4" inlet, 2.5" outlet, and built-in & machined anti-surge. Default / Standard Option
* T04E Frame with 4" inlet, 2" outlet, and built-in & machined anti-surge.
TURBINE HOUSING OPTIONS:
* T3 Inlet and 4 Bolt, 2.5 inch Outlet (Available in .48, .63, or .82 A/R)
* T25 Inlet, 5 Bolt GT Outlet, and built in 44 External Waste Gate Port (Available in .72 A/R)
* T3 Inlet and V-Band, 2.5 inch Outlet (Available in .48, .63, or .82 A/R)
* T3 Inlet and 5 Bolt Ford Style Outlet (Available in .48, .63, or .82 A/R)
* T3 Divided Inlet and 3 inch V-band Outlet (Available in .78 A/R)
* T3 Divided Inlet and 3 inch V-band Outlet (Available in 1.06 A/R)
* T3 Inlet and Cosworth Outlet (Available in .72 A/R)
* V-Band Inlet (machined from T3) and 2.5 inch V-Band Outlet (Available in .82 A/R)
APPLICABLE GARRETT PART NUMBERS:
* 757197-5009S
Garrett GTW3476R (aka GTW5857R) 58mm Ball Bearing Turbo* 841691-5001S
More Information
| Part Number | 841691-5001S |
|---|---|
| Brand | Garrett |
| Type of Part | GTW Series |
| Length | 15 |
| Width | 15 |
| Height | 15 |
| Weight | 25.000000 |
