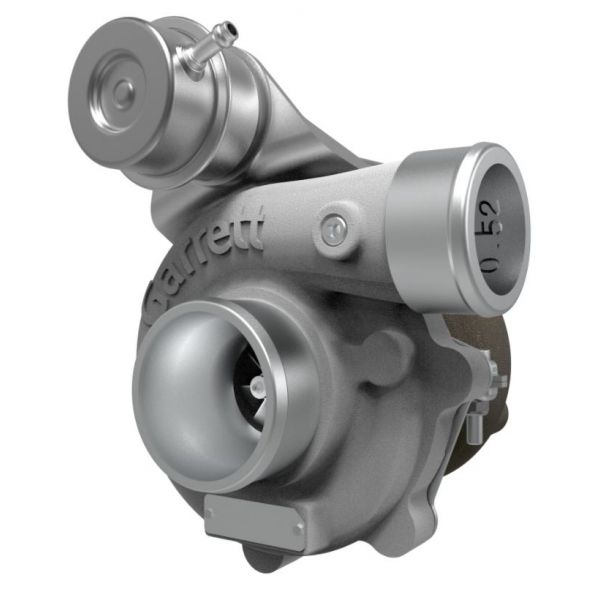

Garrett GBC14-200 Club Line Turbo - 34mm
TAGS: Garrett GBC14-200 Club Line Turbo, 34mm, 200HP, Garrett, 896051-5004S
Price Match Guarantee
Found it for less but value our service?
Details
Garrett GBC14-200 Club Line Turbo - 34mm - 896051-5004S
Horsepower: 140 - 200 | Displacement: 0.4L - 1.0L
Club Line is a product engineered for small engine displacements. This includes powersports, personal watercraft, and automobiles. These turbochargers feature internally wastegated turbine housings and journal bearing rotating groups. GBC stands for GARRETT BOOST | CLUB LINE. The first two numbers indicate the turbo frame size. The larger the number the larger the turbine wheel. The numbers following the dash indicate the peak potential flywheel horsepower rating.
Garrett GBC14-200 Club Line Turbo:
•34mm compressor inducer
•Supports up to 200 horsepower
•Forged Fully-Machined Compressor Wheel
•Journal Bearing Rotating Group
•Internally wastegated turbine housing
•Engineered for small displacement engines including powersports, personal watercraft and automobiles
The maximum power stated for each Garrett GBC14-200 Club Line turbocharger has been calculated based strictly on choke flow of the compressor map (total turbo capability), which represents the potential flywheel power. Performance results of this product are highly dependent upon your vehicle’s modifications and tuning/calibration. Please consult with your local distributor before making a purchase.
Garrett Boost | Club Line GBC14-200
Applicable Part Numbers: 896051-5004S
| Compressor | Turbine | ||||||||
| Inducer | Exducer | Trim | A/R | Inducer | Exducer | Trim | A/R | Inlet | Outlet |
| 34mm | 46mm | 55 | 0.52 | 39mm | 36mm | 84 | 0.45 | 3 Bolt | 4 Bolt |
Compressor Aero:
Forged, fully-machined compressor wheels with advanced aero is offered in 34mm inducer size and 46mm exducer. Garrett GBC14-200 Club Line Turbo can support from 140-200 horsepower. The compressor wheel is a 55 trim and the Compressor housing A/R is 0.52 A/R. This turbocharger can support up to 22 lbs/min of airflow and up to 2.8 pressure ratio.
Performance results of this product are highly dependent upon your vehicle’s modifications and tuning/calibration. The target power represented has been calculated based strictly on choke flow of the compressor map (total turbo capability), which represents the potential flywheel power.
Journal Bearing Rotating Group:
The oil cooled center housing features the latest generation of journal bearing rotor group.
Internally Wastegated:
Garrett GBC14-200 Club Line turbochargers are fully assembled with an internally wastegated turbine housing. Garrett’s technicians calibrate the actuator for optimum performance, eliminating any need for adjustment. Garrett GBC14-200 Club Line turbochargers are calibrated with a 0.5 bar actuator. Actuators with higher pressure settings (1.0, 1.5 bar) are available for individual purchase.
Turbine Housing:
The Garrett GBC14-200 Club Line turbine housing inlet can be machined to V-band with OD of 2.24” (57mm) for use with 1.75” tubing.
More Information
| Part Number | 896051-5004S |
|---|---|
| Brand | Garrett |
| Type of Part | GBC Club Line Turbos |
| Length | 15 |
| Width | 15 |
| Height | 15 |
| Weight | 20.000000 |
