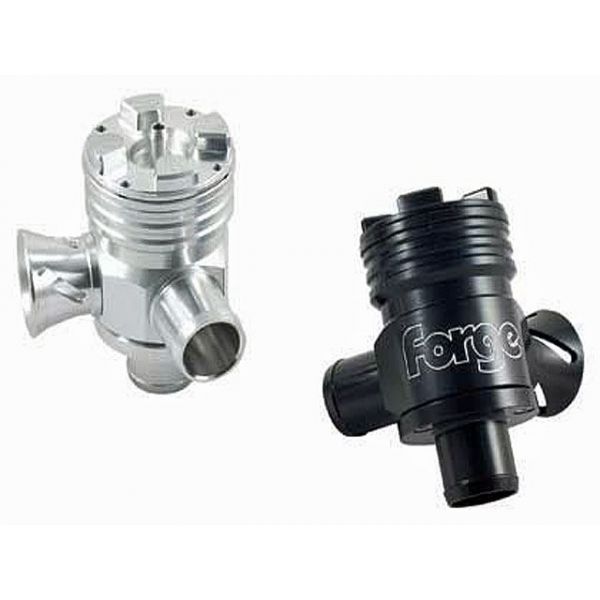

Forge The Splitter - Recirculation and Blow Off Valve (BOV)
Price Match Guarantee
Found it for less but value our service?
Details
The Splitter is a truly remarkable valve that gives a combination of blow off and recirculation valve operation all at the same time and has been specifically designed for the many turbo engined applications that operate metered airflow management sysyems. This means you get all the noise of the blow off valve whilst retaining the compatibility with the recirculation requirements of the engine management system. As a bonus we also offer the ability to convert the valve to recirculation only mode for those times when stealth running is required.
This valve uses a Copper and Zinc alloy piston which utilises new sealing technology along with a variable spring preload incorporating a ratchet type top adjuster that will allow for the positive and precise adjustment to match the valve to your engine. This is achieved by using a unique single, conical, progressive rate spring that can allow for the retention of boost pressure over a wide adjustment range. This unique spring design also allows for unrestricted piston travel and flow volume regardless of the amount of pre-load adjustment added to the spring. Other manufacturers valves using cylindrical springs with adjustable pre-load often experience restricted piston travel and a reduction in flow volume.
When we say our products are Engineered For Performance. Its not a catchy sales phrase, it's the truth and we prove it with every product we manufacture.
To download fitting instructions for this product click here: http://www.forgemotorsport.com/media/USASPLTR.pdf
Please Note: This valve requires installing the opposite way to the original Bosch Valve. i.e. the side pipe is fitted into the Turbo Intake Hose and the base pipe connects to the hose that runs to the boost side of the turbo.
More Information
| Part Number | FMDVSPLTR |
|---|---|
| Brand | Forge Motorsport |
| Type of Part | Blow Off Valves |
| Length | 10.0 |
| Width | 6.0 |
| Height | 6.0 |
| Weight | 4.000000 |
Reviews
Fitment
The Splitter is a truly remarkable valve that gives a combination of blow off and recirculation valve operation all at the same time and has been specifically designed for the many turbo engined applications that operate metered airflow management sysyems. This means you get all the noise of the blow off valve whilst retaining the compatibility with the recirculation requirements of the engine management system. As a bonus we also offer the ability to convert the valve to recirculation only mode for those times when stealth running is required.
This valve uses a Copper and Zinc alloy piston which utilises new sealing technology along with a variable spring preload incorporating a ratchet type top adjuster that will allow for the positive and precise adjustment to match the valve to your engine. This is achieved by using a unique single, conical, progressive rate spring that can allow for the retention of boost pressure over a wide adjustment range. This unique spring design also allows for unrestricted piston travel and flow volume regardless of the amount of pre-load adjustment added to the spring. Other manufacturers valves using cylindrical springs with adjustable pre-load often experience restricted piston travel and a reduction in flow volume.
When we say our products are Engineered For Performance. Its not a catchy sales phrase, it's the truth and we prove it with every product we manufacture.
To download fitting instructions for this product click here: http://www.forgemotorsport.com/media/USASPLTR.pdf
Please Note: This valve requires installing the opposite way to the original Bosch Valve. i.e. the side pipe is fitted into the Turbo Intake Hose and the base pipe connects to the hose that runs to the boost side of the turbo.
