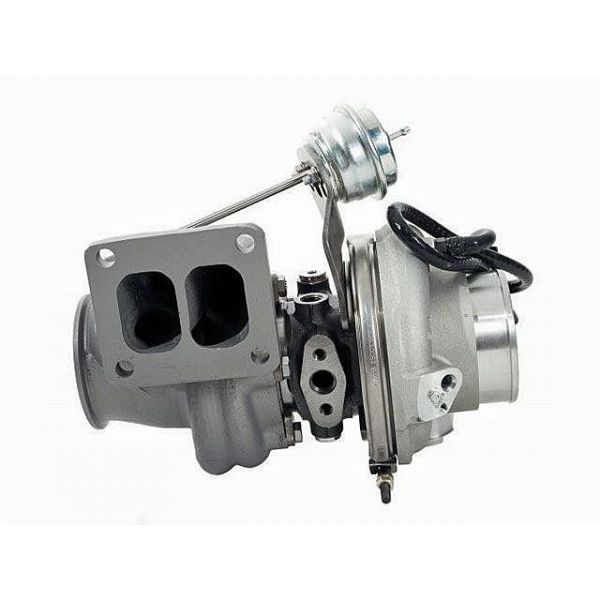

BorgWarner EFR 9280 T4 .92ar Twinscroll IWG Turbocharger
*(1) EFR 9280 ALUM In Stock, Order Now!
Price Match Guarantee
Found it for less but value our service?
Details
BorgWarner EFR 9280 T4 .92ar Twinscroll IWG Turbocharger
The largest and highest power EFR turbo ever created – EFR9280 is a brand new release for 2019 from BorgWarner Turbo Systems. EFR9280 uses a massive 73.7mm inducer and is intended for applications which will push a turbo to the limit. This unique turbo was designed specifically by BW engineering to combine the high flowing 91mm compressor exducer with 73.7mm compressor inducer and the massive swallowing capacity their 80mm turbine can deliver in a wide variety of turbine housings. Using the same 80mm Gamma-Ti turbine wheel from the EFR9180, this turbo flows a remarkable 110lbs/min of air at the same 117k RPM maximum shaft speed.
Compressor Specifications:
Compressor Type: Forged-Milled Wheel (FMW) Extended Tip
Compressor Wheel OD (exducer): 91mm
Compressor Wheel Inducer: 73.7mm
Max Flow Rate: 110 lb/min
Built-in BOV: All EFR compressor housings incorporate an integrated BOV.
Compressor Housing Connections:
Inlet: 4″ Ported Shroud Hose Coupler
Outlet: 2.5″ Hose Coupler w/ integrated Vband option
Using Borg Warner’s 91mm FMW compressor (73.7mm inducer) the 9280 houses our traditional 7 blade EFR extended-tip compressor wheel design capable of 110 lb/min airflow rate. Ceramic Ball Bearing only, watercooling optional (recommended). We strongly recommend using an EFR Speed Sensor if you plan to run to the limit.
Turbine Specifications - T4, Twin Scroll, .92AR, Internally Wastegated:
Turbine Type: Low Inertia Gamma-Ti Turbine Wheel
Turbine Wheel OD: 80mm
Stainless Steel Turbine Housing
Turbine outlet: GT V-Band (aka 3″ V-Band) ~92mm OD for all EFR turbos
More Information
| Part Number | 12807100005, 12807100003, 12801019009 |
|---|---|
| Brand | BorgWarner |
| Type of Part | EFR 9280 (1100HP) |
| Horsepower Gains | 600 - 1100 HP |
| Length | 15 |
| Width | 15 |
| Height | 15 |
| Weight | 30.000000 |
