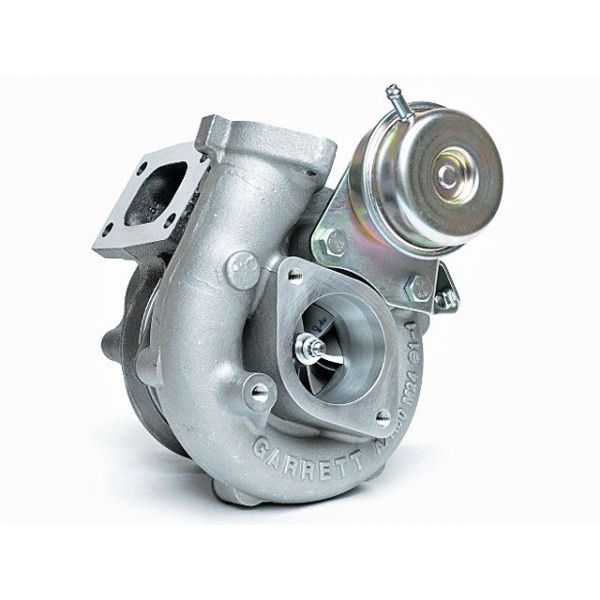

ATP Garrett GTX2971R 84 Trim Drop-In Turbo Upgrade (560HP)
Price Match Guarantee
Found it for less but value our service?
Details
Garrett GTX2971R - 84 trim - SR20DET Drop-In Turbo Upgrade for 1989-1998 Nissan 240SX - GRT-TBO-507
PRODUCT DESCRIPTION:
New Garrett GTX2971R (84 Trim Turbine Wheel) dual ball bearing turbo for Nissan SR20DET platform. Direct drop-in for Nissan SR20DET platforms equipped with an original Garrett GT2560R.
Includes internally gated T25 flanged turbine housing (available in either .64 A/R or .86 A/R) and internal wastegate actuator (12 to 14PSI).
with ultra high flow compressor and featuring Garrett 11-Blade technology. 560HP potential flow.
The Garrett GTX2971R is available as a direct drop-in replacement to existing GT28 or GTX28 series turbochargers!
The Garrett GTX2971R features an ultra high flow compressor wheel and Garrett 11-Blade technology. 560HP potential flow.
PRODUCT SPECIFICATIONS:
* Compressor Wheel Inducer: 54.1mm
* Compressor Wheel Exducer: 71.4mm
* Compressor Wheel Trim: 58
* Turbine Wheel Inducer: 56.5mm
* Turbine Wheel Exducer: 51.8mm
* Turbine Wheel Trim: 84
* Nissan SR20DET style compressor housing (2 Bolt Inlet Flange and 3 Bolt Outlet Flange).
* Internal Wastegate Actuator (12 to 14PSI)
TURBINE HOUSING OPTIONS:
* T25 Inlet, 5 Bolt Outlet, and internally gated (Available in .64 or .86 A/R)
APPLICATION NOTES:
* Uses same oil and coolant fittings as the standard GT28, GT30, and GTX35 series turbochargers
APPLICABLE GARRETT PART NUMBERS:
* 836041-5002S
* 836041-2
* 836013-0002
More Information
| Part Number | GRT-TBO-507 |
|---|---|
| Brand | Garrett |
| Type of Part | Turbo Upgrades |
| Engine Fitment | SR20DET |
| Length | 15 |
| Width | 15 |
| Height | 15 |
| Weight | 30.000000 |
