ATP Garrett G25-550 Turbo Upgrade, Focus ST, EWG - .72AR
TAGS: Focus ST G25-550 Turbo Upgrade Kit, Garrett, 13-19 Ford Focus ST, Fusion Ecoboost, ATP, ATP-FOC-090
Price Match Guarantee
Found it for less but value our service?
Details

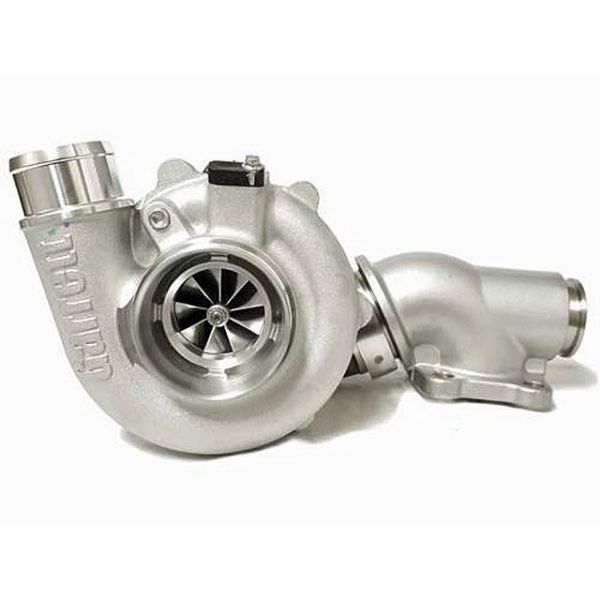

Ford Focus ST Garrett G25-550 Turbo Upgrade, EWG - .72AR by ATP for 2013-2019 - ATP-FOC-090
Product Description:
The Ford Focus ST Garrett G-Series G25-550 .72 A/R turbo kit for the 2013-2019 Focus ST 2.0L Ecoboost. Bolt on, stock location externally wastegated upgrade turbo solution. 550HP from a small frame package!
Ultra High Flow G-Series Compressor Wheel
Evolutionary aero G-Series Turbine Wheel made from high heat resistance Mar-M Alloy, 1050 Celsius Rating
Includes -4AN oil feed fitting and -6AN coolant/water fittings
Product Features:
Stock Location, Direct Bolt-on
Externally Wastegated
Built-in external wastegate port (Tial MVS) for future expansion. Capoff provided
V-band flanged turbo adapter (NOW Stainless Steel)
Any stock turbo flanged downpipe will fit
Any stock placement intake pipe will fit. Adapter elbow provided.
Any stock placement charge pipe will fit
New steel braided oil feed and coolant lines provided
Fits stock oil drain tube
MVS wastegate and dumptube sold separately
Suggested starter dump tube, P/N ATP-MDP-048
Product Specifications:
Compressor Wheel Inducer: 48mm
Compressor Wheel Exducer: 60mm
Compressor Wheel Trim: 65
Compressor Housing Inlet: 3 Inch Diameter
Compressor Housing Outlet: 2 Inch Diameter
Compressor Housing A/R: .70
Turbine Wheel Inducer: 54mm
Turbine Wheel Exducer: 49mm
Turbine Wheel Trim: 84
Product Applications:
+2013 Ford Focus ST
+2013 Ford Fusion 2.0L Ecoboost
More Information
| Part Number | ATP-FOC-090 |
|---|---|
| Brand | ATP Turbo |
| Type of Part | Turbo Upgrades |
| Engine Fitment | 2.0L Ecoboost |
| Length | 26 |
| Width | 16 |
| Height | 16 |
| Weight | 45.000000 |
