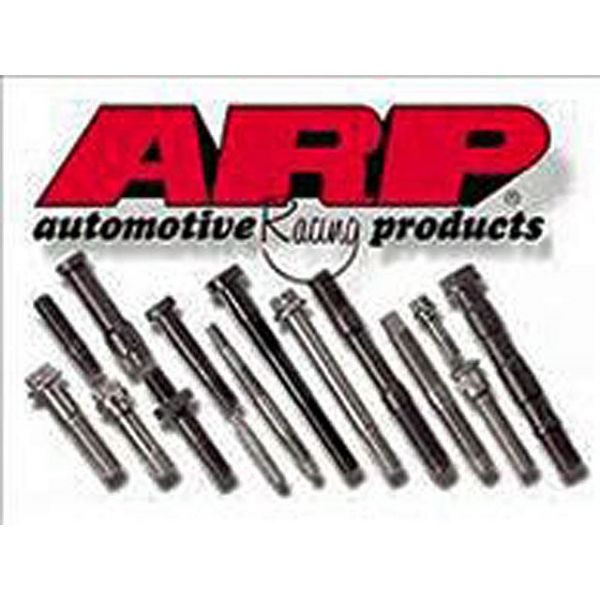

ARP Head Stud Kit - Toyota 2ZR-FE
Price Match Guarantee
Found it for less but value our service?
Details
This stud kit is specifically designed for the Toyota 2ZR-FE engines. This kit provides far superior clamping for the cylinder head, improving head gasket sealing. Studs are ARP Pro Series made of 8740 alloy, with 200,000 psi yield strength. Threads are rolled before heat treat, dramatically improving durability. These studs are also re-usable, unlike the torque-to-yield stock head bolts.
Kit includes 10 studs, 10 12-point nuts, 10 washers, ARP assembly lube, and assembly instructions.
Torque Spec:
55 ft-lb with ARP lube
65 ft-lb with 30WT oil
Use torque sequence from the service manual. Torque only to the spec above, DO NOT turn an additional 90 degrees.
More Information
| Brand | ARP |
|---|---|
| Type of Part | Engine |
| Engine Fitment | 1.8L (2ZR-FE) |
| Length | 6.0 |
| Width | 10.0 |
| Height | 6.0 |
| Weight | 5.000000 |
Reviews
Fitment
This stud kit is specifically designed for the Toyota 2ZR-FE engines. This kit provides far superior clamping for the cylinder head, improving head gasket sealing. Studs are ARP Pro Series made of 8740 alloy, with 200,000 psi yield strength. Threads are rolled before heat treat, dramatically improving durability. These studs are also re-usable, unlike the torque-to-yield stock head bolts.
Kit includes 10 studs, 10 12-point nuts, 10 washers, ARP assembly lube, and assembly instructions.
Torque Spec:
55 ft-lb with ARP lube
65 ft-lb with 30WT oil
Use torque sequence from the service manual. Torque only to the spec above, DO NOT turn an additional 90 degrees.
