AEM Air Inlet Temperature (AIT) Sensor - 1/8th NPT
SKU:
30-2014
Views: 1
Add Your Review
$56.32
$62.58
Qty
All Major
Credit Cards
Price Match Guarantee
Found it for less but value our service?
Details
AEM's Air Inlet Temperature Sensor Kits (AIT) senses the air temperature on the inlet side of the engine.
30-2014 - Air Temp Sensor Kit
- Accuracy: < 1.5°C / 2.7°F
- Operating Temp: -20C to 150C / -4F to 302F
- Resistive Range (Ω): See Instructions
- Thermal Time Constant: < 15 sec. The time required for the sensor to achieve 63.2% of its steady state value when subjected to a step change in ambient temperature [Tc=(Tf-Ti)*63.2%+Ti]. Test medium: silicone oil
- Sensor Body Material: Brass
- Thread: 1/8" NPT
- Hex Size: 1/2"
- Installation Torque: 13.5Nm / 10 ft-lbs
- Weight: 10g
- Electrical Termination: Weatherproof High Performance DTM-Style connector. Includes Mating Connector, Pins & Wire Seals

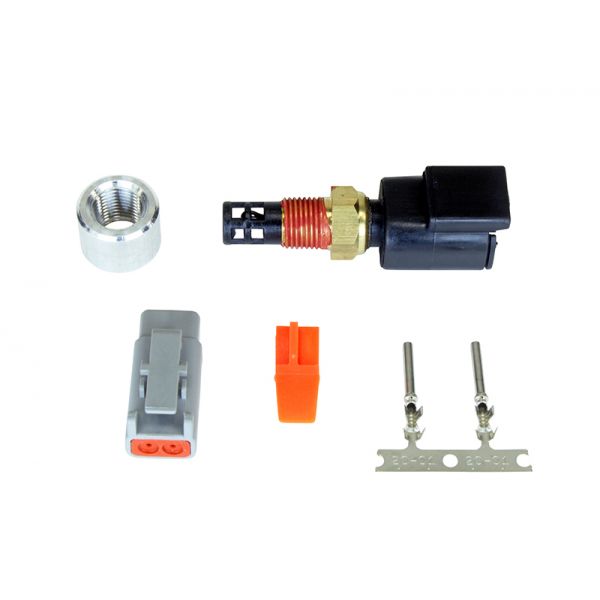

- Includes: Air Temp Sensor High Performance DTM-Style, 1/8" NPT Alumium Bung, Mating Connector, Pins & Wire Seals
30-2014: Air Temp Sensor with 1/8" NPT Male Thread, High Performance DTM-Style Connector, Aluminum Bung, Connector & Pins
- Weatherproof connector
- Includes mating connector & pins
- Senses the air temperature on the inlet side of the engine
More Information
| Part Number | 30-2014 |
|---|---|
| Brand | AEM |
| Type of Part | Engine Management |
| Length | 12 |
| Width | 12 |
| Height | 5 |
| Weight | 5.000000 |
