2000-2005 Celica GT / GTS Tein Street Basis Coilovers
Price Match Guarantee
Found it for less but value our service?
Details

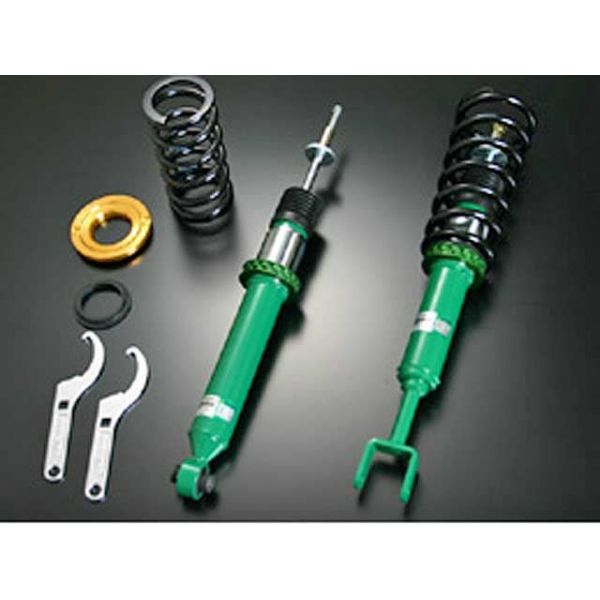

Tein Street Basis Z Coilover Kit for 2000-2005 Celica GT / GTS ZZT231L - GSY70-8USS2
The Tein STREET BASIS Z Coilover System combines affordability and comfort packaged into a masterfully constructed suspension system. These coilovers utilize a Twin-Tube setup that when compared to the regular mono-tube systems, these twin-tube systems attain longer stroke with a smaller repulsive force, resulting in increased ride comfort. Thanks to this unique characteristic, you can negotiate gaps and bumps steadily on rough roads, meaning a smooth ride at low speed and stability at high speeds.
Front Specifications:
- Damping Force Adjustment: N
- Full-Length Ride-Height Adjustable: N
- Upper Mount: OEM
- Recommended Ride Height (mm): -35
- Recommended Ride Height (inch): -1.4
- Ride Height Adjustable Range:
- Max Low (mm): -70
- Max Low (inch): -2.8
- Max High (mm): -20
- Max High (inch): -0.8
- Recommended Low (mm): -45
- Recommended Low (inch): -1.8
- Recommended High (mm): -25
- Recommended High (inch): -1
- Spring
- Rate (kgf/mm): 6
- Rate (lbs/in): 336
- SP PART#SB060-13200
- Free Length (mm): 200
- I.D. (mm): ID70
Rear Specifications:
- Damping Force Adjustment: N
- Full-Length Ride-Height Adjustable: N
- Upper Mount: OEM
- Recommended Ride Height (mm): -50
- Recommended Ride Height (inch): -2
- Ride Height Adjustable Range:
- Max Low (mm): -95
- Max Low (inch): -3.7
- Max High (mm): -27
- Max High (inch): -1.1
- Recommended Low (mm): -60
- Recommended Low (inch): -2.4
- Recommended High (mm): -40
- Recommended High (inch): -1.6
- Spring:
- Rate (kgf/mm): 7
- Rate (lbs/in): 392
- SP PART#JA070-1B170-3
- Free Length (mm): 170
Fitment:
- Year: 2000-2006
- Make: Toyota
- Model: Celica
- Drivetrain: FF
- Chassis: ZZT231L
- Motor Size: 1800
- Vehicle Region: USA
Features:
- Steel Construction
- Twin Tube internal construction
- Thread Type Ride Height Adjustment
- Utilizes OEM Mounts
- 16 way adjustable dampers, compression and rebound combined
- High Durability and Reliability
- Anodized brackets with Teflon coated shock body for heavy duty rust prevention
More Information
| Part Number | GSY70-8USS2 |
|---|---|
| Brand | Tein |
| Type of Part | Suspension |
| Engine Fitment | 1.8L (1ZZ-FE & 2ZZ-GE) |
| Length | 35 |
| Width | 12 |
| Height | 12 |
| Weight | 40.000000 |
